Telecaster Wiring Diagrams

If you're having trouble with your Telecaster then look no further than our Telecaster Wiring Diagram page. With wiring schematics for a standard 3-way switch as well as the Oak Grigsby 3 Way switch variant, we've got you covered whether you're adding new components or just renewing your current wiring.

If you need extras then shop all our guitar electrics here.

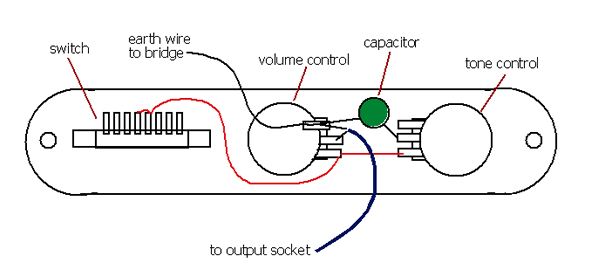

Squier Telecaster® wiring diagram (Standard 3-way switch)


USA Telecaster® Wiring Diagram (Oak Grigsby/CRL 3-way switch)


Telecaster® 4-Way Switch Mod

The four-way Tele switch configuration works with an Oak Grigsby Or CRL 4-way switch to give you both series and parallel circuits. This great little wiring enhancement for Telecaster guitars that really opens up the tone options for you.

The Telecaster 4-way switch is available as a pre-soldered kit here.


Telecaster® HS Wiring Mod

This wiring kit uses 500k solid shaft pots for both volume and tone. The additiona of a 500k resistor wired inline with the single coil acts to "step down" the pot to 250k, thereby taming the high frequencies, producing a more traditional Telecaster tone.

Purchase the Telecaster® HS wiring Mod here


Telecaster® Deluxe Wiring Diagram

Standard Telecaster® Deluxe wiring diagram, with 2 Humbuckers, 2 Volume/ Tone controls, and a 3 way toggle switch.

Purchase the Telecaster® Deluxe Wiring Kit here


Broadcaster Wiring Diagram

Originally named the "Broadcaster" Until Gretsch complained, these models were wired completely differently to what we now see in the modern Telecaster®. One pot acts as a master volume control, and the second pot as a blender to bring in the neck pickup in position 1.

  • P1 – Bridge pickup with active blender to allow neck pickup to be added
  • P2 – Neck pickup alone – blender inactive, no tone control
  • P3 – Neck pickup with .05uF capacitor (very warm tone, blender inactive)
